PROCESS AIR COMBUSTION CONTROL

Control the flame.
Stop it where it stops.

Flare tips, flame cells and in-line arrestors: the hardware that keeps combustion where it belongs and stops flame propagation everywhere else. Built in Tulsa, sized to your gas group.

GAS GROUPS B · B1 · C · D · HE · HD SIZES 2" – 72" ALUMINUM · CARBON · STAINLESS

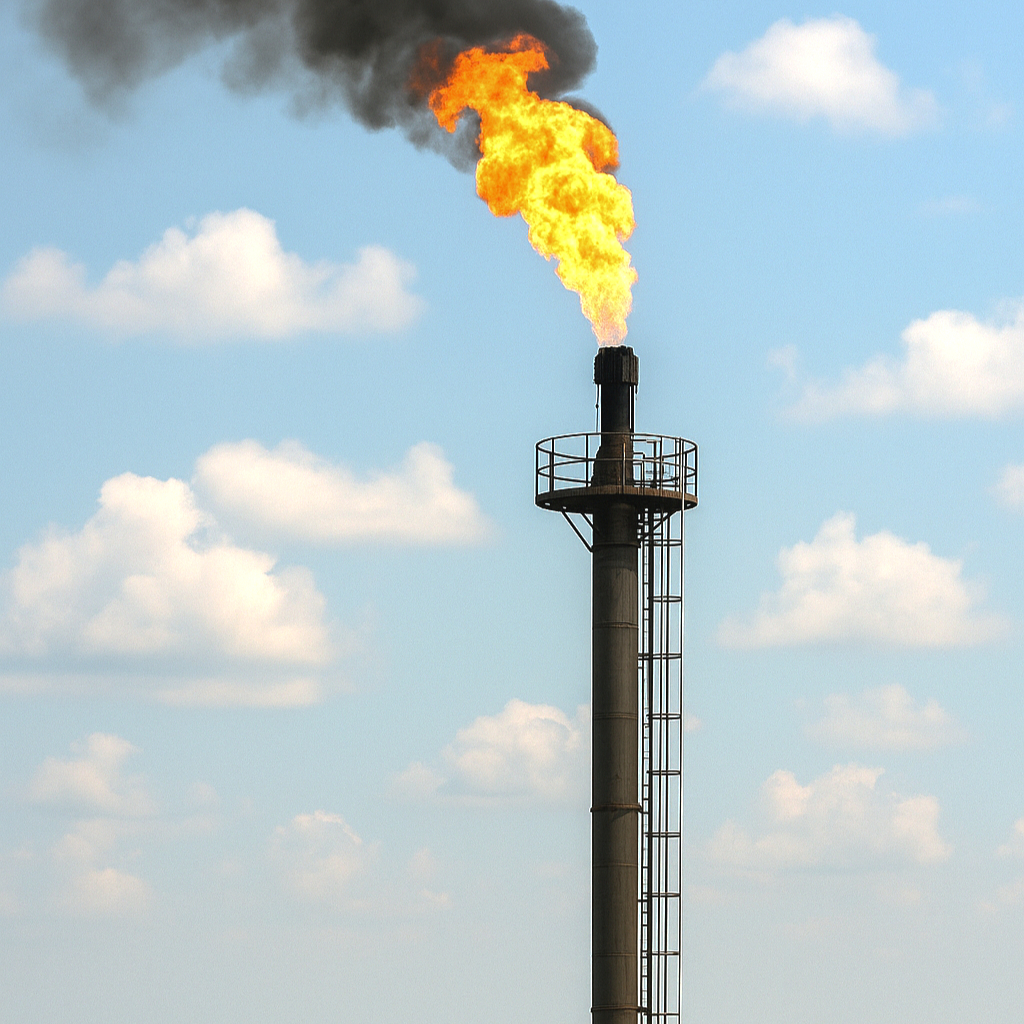

Flameco flare tip burning in the field FIG. 00 · FLARE TIP IN SERVICE
Flameco flare tip hardware FIG. 01 · FLARE TIP
01 FLARE TIPS

Safe burn at any
flow rate.

Engineered for safe, efficient combustion across varying flow rates. Integrated anti-flashback protection keeps the flame from reversing into the flare system, stable, reliable performance that meets EPA air quality standards.

ANTI-FLASHBACK ELEVATED FLARE GROUND FLARE EPA AIR QUALITY
01.1

Varying flow rates

Stable combustion whether the line is at a trickle or wide open.

01.2

Flashback protection

Built-in protection prevents flame reversal back into the flare system.

01.3

Elevated or ground

One tip family, both flare architectures.

02 FLAME CELLS

One job:
stop flame propagation.

Engineered for thermal resistance, pressure surges and high-flow conditions: safe process air and gas handling across industrial chemical and energy applications.

FIG. 02 · FLAME CELL SECTION NOT TO SCALE
FLAME FRONT QUENCHED AT ELEMENT GAS PASSES · FLAME DOES NOT 2" OR 4" THICK

A flame cell's primary function is to stop flame propagation. Gas keeps moving; the flame front hits the element and dies there. Available in 2" or 4" thickness.

SPEC · FLAME CELLSFC-SERIES
Gas groupsB, B1, C, D, HE, HD
MaterialsAluminum, carbon & stainless steel
Sizes2" – 72"
Thickness2" or 4"

Don't see your die listed? Call the shop about custom-sized dies: (918) 832-1100.

Flameco threaded in-line flame arrestor FIG. 03 · THREADED IN-LINE ARRESTOR
03 THREADED IN-LINE ARRESTOR

For the small lines
that still carry flame.

In-line flame arrestors are built for end-of-line applications where system operating pressure sits close to atmospheric, and the chance of a flame stabilizing on the arrestor element for any length of time is minimal.

FUEL-ASSIST LINES WASTE GAS INSTRUMENTATION LINES
SPEC · IN-LINE ARRESTORTHREADED
Gas groupsB, B1, C, D, HE, HD
MaterialsAluminum, carbon & stainless steel
Widths1", 2", 3", 4"
04 GAS GROUPS

Six standard dies.
Custom on request.

Every element is die-sized to the gas group it protects against. If yours isn't on the list, give us a call about a custom-sized die.

BGAS GROUP
B1GAS GROUP
CGAS GROUP
DGAS GROUP
HEGAS GROUP
HDGAS GROUP
Flameco flame cells in the shop
05 IN THE SHOP

Sized here.
Built here.

Flame cells and arrestors come out of the same Tulsa shop as our burners: aluminum, carbon or stainless, cut to your line size from 2" to 72".

See our capabilities Gallery
FIG. 05 · FLAME CELL ELEMENTS
06 NEXT STEP

Tell us the line size and the gas group. We'll do the rest.

New spec or a like-for-like replacement. Send the details and we'll quote it. Still looking for answers? Get in touch and we'll get back to you as soon as possible.

Request a quote → Order replacements
