No blower. No power draw. Flameco has led natural draft burner innovation since 1980: five burner types, a full menu of design options, and every unit sized to your vessel.
A natural draft burner has no fan to fail and no motor to feed. The heat of the flame itself drives the air the flame needs.
Hot combustion gas in the stack is lighter than the ambient air outside it. That density difference creates a gentle negative pressure, or draft, at the burner, and the draft pulls fresh combustion air in through the burner's air inlets.
Because the system is self-driven, what matters is getting the geometry right: burner type, air inlet arrangement and options matched to your firetube and your site. That sizing is the work we've been doing since 1980.
Combustion gas in the firetube and stack is hotter, and lighter, than the air outside.
That buoyancy difference produces a steady negative pressure at the burner inlet.
Fresh combustion air is drawn in on its own, nothing electrical to fail or feed.
Every Flameco burner starts with one of five base types. Tell us the vessel and duty. We'll tell you which one, and at what size.
Round-body natural draft burner, the classic Flameco configuration for direct firetube mounting.
Hinged burner housing that swings open for inspection and service without unbolting the assembly.
Rectangular plenum housing for single-firetube vessels, the workhorse of the line.
One box housing serving multiple firetubes on the same vessel, fewer penetrations, one air supply.

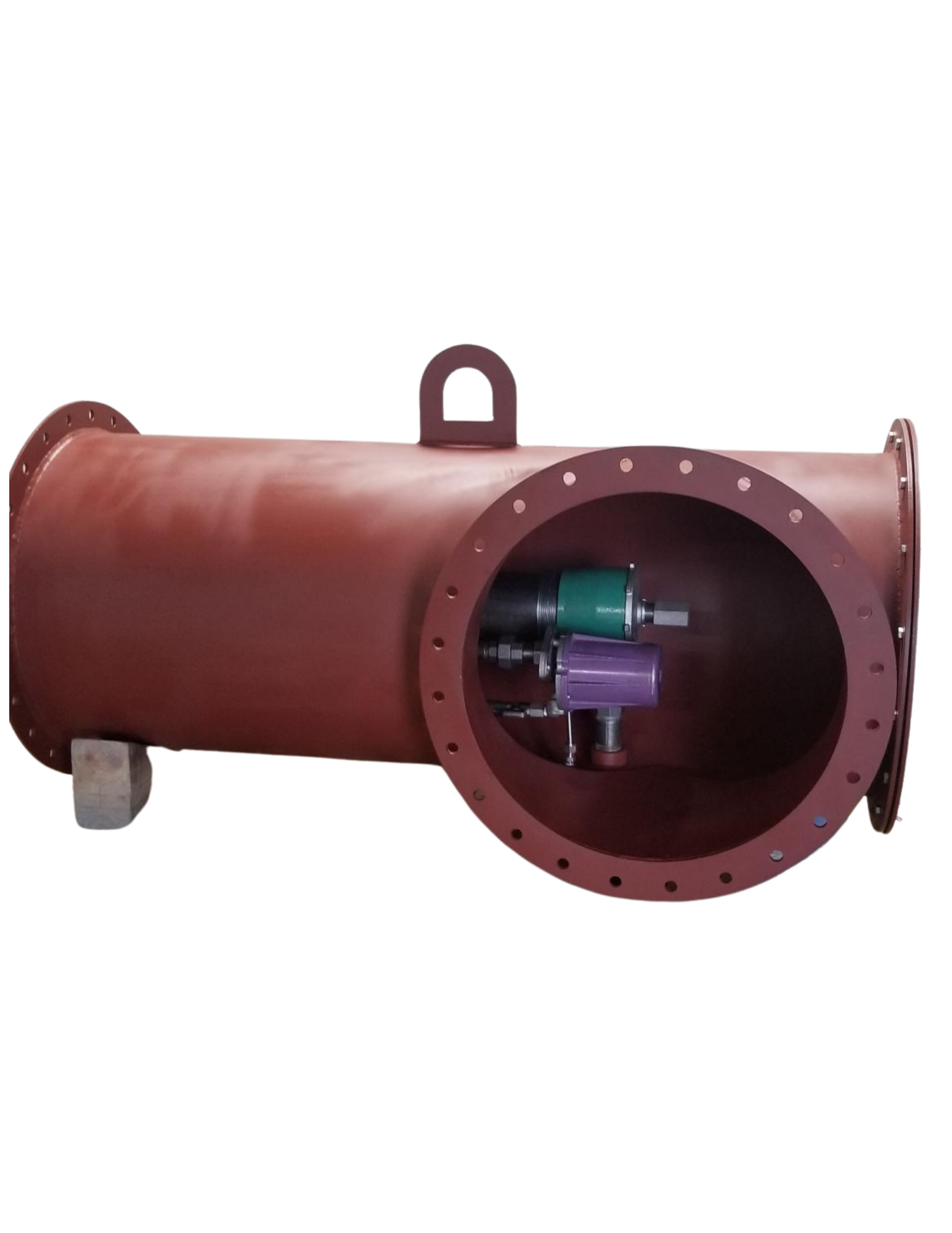

Mounts to the side of the vessel for clearance and ease of access. Full published range below.
FIG. 02 · SIDE MOUNT ASSEMBLY| Recommended BTU range | 50,000 – 2,000,000 BTU/hr |
|---|---|
| Recommended firetube sizes | 4" – 30" |
| Recommended use | Clearance & ease of access |
| Draft type | Natural, no blower, no power draw |
Our engineering and manufacturing capabilities let us combine these designs to meet your exact requirements: noise limits, air control, elevation, all of it.
The baseline natural draft configuration: open air inlets, proven geometry, minimum parts.
Partially insulated housing, the cost-effective choice when extreme noise reduction isn't required.
Fully insulated with an added baffle plate, the most effective noise reduction Flameco offers.
A pneumatic push-pull or rotating system that controls the primary air flow draft.
Push-pull air control paired with reduced-noise or low-noise housings, combined designs to spec.
A safety system that burns off excess or unusable gases at high elevations, minimizing fire hazards.
Every burner we've built is drawn and filed. Send a serial or a PO number and we quote the exact replacement from the original drawing.
Order the burner built the way your crew works: access, ignition hardware, connections and spools, all specified up front.
Built into the burner housing at fabrication.
Enables easy access to internal piping, main burner, and pilot assemblies.
Provide additional safety and stability with transporting, mounting, or securing the burner. This option is recommended when the burner is to be mounted more than 4 ft from the ground.
Manway covers are attached by nuts & bolts, providing easy access to internal components.
Purge fans push air through the firetube and stack, eliminating residual gas.
Rather than a traditional bolted hinge-type, clamps allow quick serviceability without requiring tools to open the housing.
The UV Sight Tube enables automatic flame monitoring for the burner.
Aluminum nuts are welded inside the housing for ease of mounting and removing the flame arrestor.
Transformer Brackets (XFMR) are made to mount inside the housing.
Ignition module brackets securely mount burner management systems for reliable installation.
Available on every burner type. Ask us for the detail or call (918) 832-1100.
Bolt-on and threaded hardware shipped with the unit.
Mounting flange adapter that connects the burner flange to unique customer requirements.
A custom threaded pipe to extend the nozzle/flame into the firetube to the proper and safe depth. Ask for this addition when the nozzle is not placed within the bath solution (4" – 6").
A mounting spool that is used to extend the flame arrestor past an obstruction. Recommended when the stack overhang exceeds the standard or when retrofitting the current unit.
Recommended for all flange connections. The Gasket provides a seamless seal aimed at preventing air or liquid from entering or exiting the flange connection.
Control secondary airflow going into the firetube. This product is aimed at retaining heat in the firetube and reducing cycle times.
Ideal for units that have the intention of returning Flue Gas for reuse. This product is also recommended for extreme weather conditions.
Designed for end-of-line vertical venting, this arrestor enables unrestricted airflow while providing flame protection for storage tanks and atmospheric vent lines.
Listed as an add-on option as well as an enhancement. Transformer Brackets (XFMR) are made to mount inside the housing.
Listed as an add-on option as well as an enhancement. Ignition module brackets securely mount burner management systems for reliable installation.
Every design, enhancement and add-on below is available on all four published burner types. Columns follow the original Flameco option tables.
| Design | O-Type | Hinge Type | Box Type | Side Mount |
|---|---|---|---|---|
| Standard | X | X | X | X |
| Reduced Noise | X | X | X | X |
| Air Control Reduced Noise | X | X | X | X |
| Push-Pull Air Control Reduced Noise | X | X | X | X |
| Push-Pull Air Control Low Noise | X | X | X | X |
| Low Noise | X | X | X | X |
| Elevated Air Supply | X | X | X | X |
| Enhancement option | O-Type | Hinge Type | Box Type | Side Mount |
|---|---|---|---|---|
| 6" x 6" Access | X | X | X | X |
| Lifting Lugs | X | X | X | X |
| Manway | X | X | X | X |
| Purge Fan | X | X | X | X |
| Quick-Clamps | X | X | X | X |
| UV Sight Tube | X | X | X | X |
| Welded Flange Nuts | X | X | X | X |
| Transformer Bracket (XFMR) | X | X | X | X |
| Ignition Module Bracket | X | X | X | X |
| Cam Lock | X | X | X | X |
| Add-on option | O-Type | Hinge Type | Box Type | Side Mount |
|---|---|---|---|---|
| Companion Flange | X | X | X | X |
| Extension Nipples | X | X | X | X |
| Extension Spool | X | X | X | X |
| Gasket | X | X | X | X |
| Manual Secondary Air Control Spool | X | X | X | X |
| Return Flue Gas | X | X | X | X |
| Threaded Vent Arrestor | X | X | X | X |
| Transformer Bracket | X | X | X | X |
| Ignition Module Bracket | X | X | X | X |
Send the firetube size, the duty and the site conditions, or just the serial number of the unit you're replacing. We've been quoting from the same drawings since 1980.
(918) 832-1100 · ONLINE@FLAMECO.COM · TULSA, OK · SINCE 1980
